ArielVision Table Lamp Tab

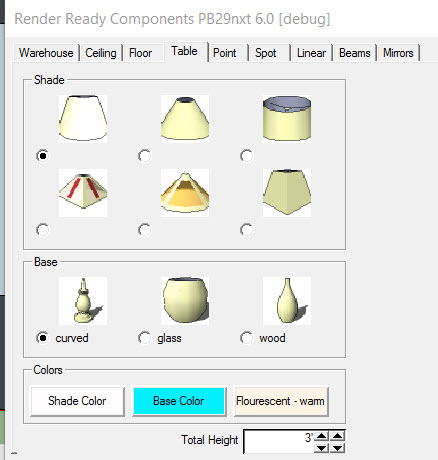

Table Lamp Tab.jpg

A table lamp is similar to a floor lamp, but it has a shorter base and is meant to be placed on top of a piece of furniture.

Shade
Choose the shape of the lamp shade.
Base
Choose the shape of the lamp base.
Colors
Click each button in the 'Colors' section to bring up a color picker dialog and change the indicated color for the lamp. The shade color will be the color of the lamp shade, and the base color will be the color of the stand. The 'Lamp Color' is the color of the light emitted by the lamp, not of any part of the lamp itself.
Total Height
The height of the lamp from top to bottom.
Shade Height
The height from the top of the lamp to the bottom of the shade.
Shade Diameter
The width of the widest part of the shade.
Base Diameter
The width of the widest part of the base.

Common Settings

Settings towards the bottom of the dialog are common to both Rectangular and Round light fixtures.
Mounting Position
Flush
Recessed
Optional Trim Settings
Width
Thickness
Glue to surfaces - If Glue to surfaces is checked, as you place the light fixture in Sketchup it will automatically stick to the nearest surface.
Make the bulb invisible when rendering - Check the box to only render the light and reflections the lamp generates, i.e., not the fixture as well.
Lighting Intensity and Color
Lighting Intensity - The brightness of the lamp, specified in Lumens (IRender uses the conversion factor of 100 watts --> 1700 lumens for all lamps.)
Color - Click button to bring up a color picker dialog and change the color of light emitted by the light fixture.
Component Placement Mode
Multiple - Place the same light fixture repeatedly until you activate a different SketchUp tool. If unchecked, an individual instance of the fixture is placed.
Query/Edit Lights
Clicking the Query/Edit Lights button displays another dialog giving you a further layer of light management options.
Create / Place
Click Create / Place when you are ready to create and then place your lamp.
