Normally nXtRender registers its commands with BricsCAD during installation.

On occasion, this mechanism may fail.

In this case you will need to manually load nXtRender the first time you run it in a particular version of BricsCAD .

Please use the following procedure:

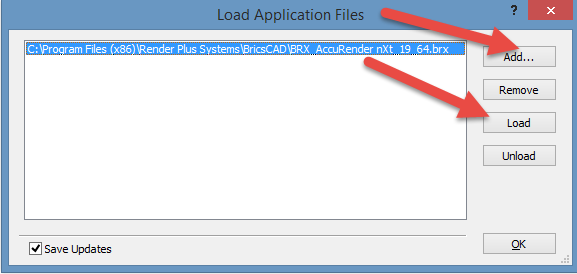

1. Type _appload at the command line, and click on Add.

2. Navigate to the folder where nXtRender was installed. This is normally C:\Program Files (x86)\Render Plus Systems\BricsCAD or C:\Program Files\Render Plus Systems\BricsCAD.

3. Select one of the following files depending on your platform and your machine type (32 or 64 bit):

• BRX_AccuRender nXt_19_.brx -OR- BRX_AccuRender nXt_19_64.brx (BricsCAD v15)
• BRX_AccuRender nXt_22_.brx -OR- BRX_AccuRender nXt_22_64.brx (BricsCAD v18)

4. Press Open

5. Press Load on the Load Application Files dialog.

Check the BricsCAD command line to verify that the application loaded without error.

At this point you should be able to type nXt to launch the application.

You should not have to repeat this procedure again for this version of BricsCAD .
